Features and Functions

Description:

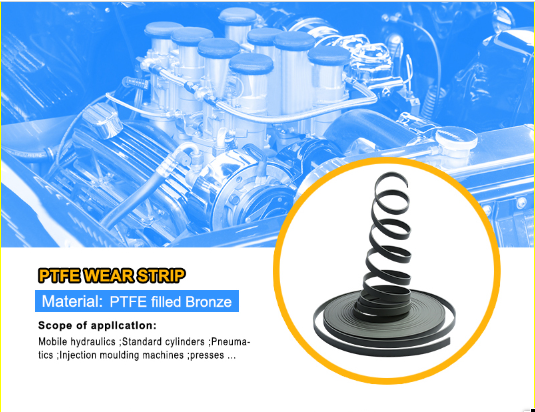

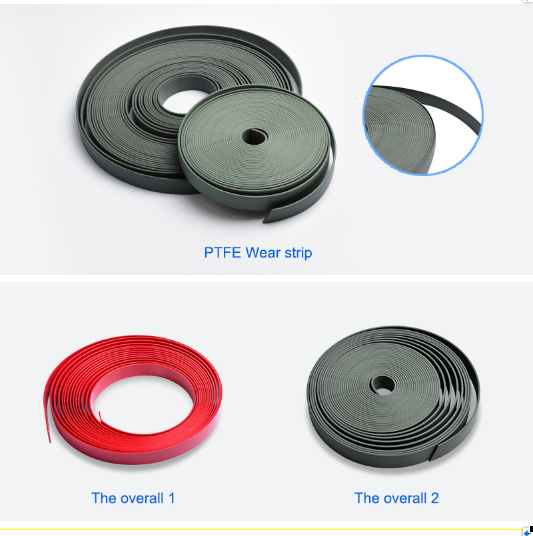

PTFE coffee wear strip in China that cut into wear ring is to guide the piston and piston rod of a hydraulic cylinder, absorbing transverse foree. At the same time, it prevents metal to metal contact, optimizing the performance of the sealing system.

Empaistic PTFE Bronze Wear Strips that cut into wear ring is to guide the piston and piston rod of a hydraulic cylinder, absorbing transverse foree. At the same time, it prevents metal to metal contact, optimizing the performance of the sealing system.

Empaistic structure, Chamfer Edge, Split Ring, Special Material or Cut Type are just on request, please indicate in your enquiry.

Name	40% Bronze-Filled PTFE Tapes FOR Mobile hydraulics and Pneumatics
Sliding speed[m/s]	15
Temperature [° C]	-60...+260
Pressure Pr: N/mm² (Max)	15 @ 25° C 12 @ 80° C 8 @ 120° C
Medium	Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others.
Material	bronze filled PTFE
Color	coffee, green, grey green
Strcture on surface	smooth, empaistic or embossed, tea drop, chamfer edge etc.
Wear ring/guide ring	cut to size and to customer specifications
Advantages	1. Suitable for dry use (depending on the load). 2. Very good temperature resistance. 3. Compatible with most of the fluids in contact. 4. Easy assembly, low friction coefficient.
Application	hydraulic cylnders, Pneumatics, Presses Injection moulding machines
Certificates	ISO9001-2008, SGS

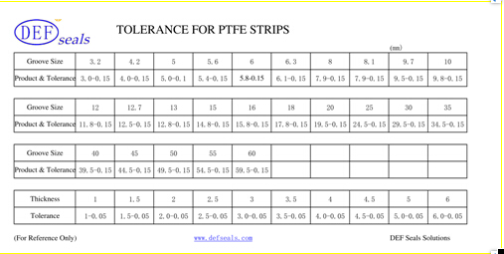

Suitable for Groove Width
Groove Width L2	2.5	3.2	4	4.2	5.6	6	6.3	8.1	9.7	10	12	15	18	20	25	30	40	50
Further sizes are available
Available Ring Thickness
Ring Thickness W	1	1.5	1.55	2	2.5	3	4	5	6
Further sizes are available
Thickness	1	1.5	2	2.5	3	4	5	6
Length of Roll (M)*	55	35	26	22	17	12	10	6
*For Reference only. There may have minimum difference.

1.How can you get sample free?
Answer: Sample free to you but your side pay the freight charge.

2.Could I make it according to my structure drawing?
Answer: Of course, we can make from your structure drawing.

3.Why choose Guangdong DEF Seals solutions Co., Ltd ?
         1.Professional and reliability.

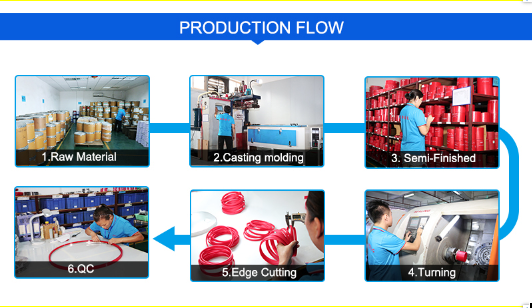

         2.Complete production line, quickly delivery.
         3.Advanced equipments, high quality and competitive price.
         4.We have a heart like fire.
         5.We are ready to serve you all the time.
