Rotary shaft and oil seals installation method skills
2023-07-19
Skeleton oil seal installation method
5.1 Installation of skeleton oil seal

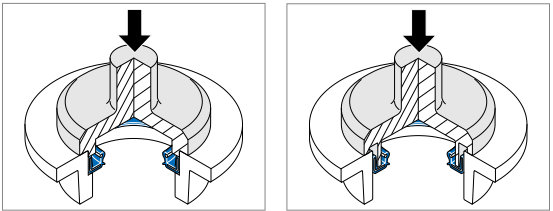

Figure14 Install using hydraulic or pneumatic assembly presses. Figure 15 Installation from the rear side. The outer diameter of the guide shaft is about 5~10mm larger than the outer diameter of the metal tool face and directly larger than the outer diameter of the seal. The diameter of the inner part of the seal is 0.5mm smaller.

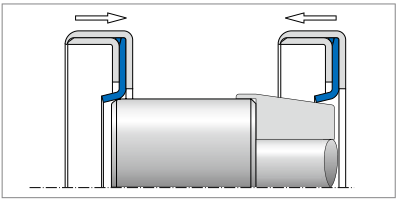

Fig16 Use tooling clamps for permissible hammer assembly! Fig17 Mounting on shafts with keyway (also applies to shafts with sharp shoulders)
Figure18 Installation of caged oil seals with PTFE sealing lips, both rubber and steel caged seals are acceptable. 5.2 V-rings

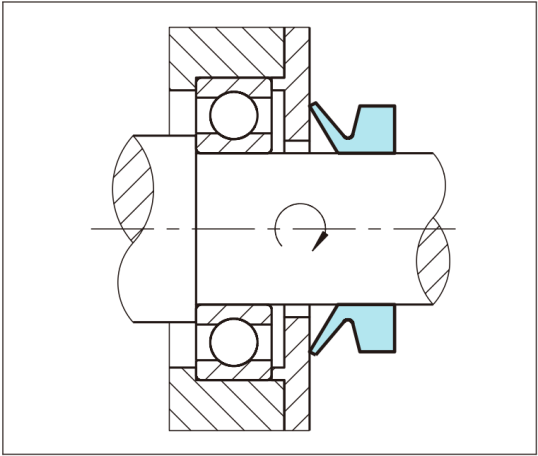

V-rings are made entirely of rubber, without fiber or metal material reinforcement, so they are particularly easy to install, V-rings can be stretched, and depending on specification, installed on flanges, pulleys and housings without cumbersome disassembly.For larger sizes, they can even be supplied as cut rings, and it is butted with hot vulcanization on site.
If you want to know more about the installation method of the rotating shaft and oil seal, the installation method of the V-ring, and the installation method of the water seal dust ring, please contact Guangdong DEF Seals solutions Co., Ltd.
